• The complete Red Rhino range is designed and manufactured in Britain

SP30 Stacker Conveyor

Discover the SP30 towable rigid stacker conveyor. Maneuverable 1750kg unit with adjustable single axle for multi-radius stockpiling.

The SP30 is a towable site mobile rigid stacker conveyor. The single axle wheel position can be manually altered to offer multiple radius stock piles. The total weight with the power pack is 1750kg which makes it easily manoeuvrable on site.

A standard SP30 conveyor is supplied with a hydraulic spool functionality to operate the belt on/off and the conveyor up and down. This requires an external 40litre supply.

An option of a Red Rhino “Power Boost” 40 litre diesel engine power pack can be purchased to control the stacker conveyor independently.

Request a quote now
Contact Us
Discover the SP30 towable rigid stacker conveyor. Maneuverable 1750kg unit with adjustable single axle for multi-radius stockpiling.

The SP30 is a towable site mobile rigid stacker conveyor. The single axle wheel position can be manually altered to offer multiple radius stock piles. The total weight with the power pack is 1750kg which makes it easily manoeuvrable on site.

A standard SP30 conveyor is supplied with a hydraulic spool functionality to operate the belt on/off and the conveyor up and down. This requires an external 40litre supply.

An option of a Red Rhino “Power Boost” 40 litre diesel engine power pack can be purchased to control the stacker conveyor independently.

Request a quote now
Contact Us

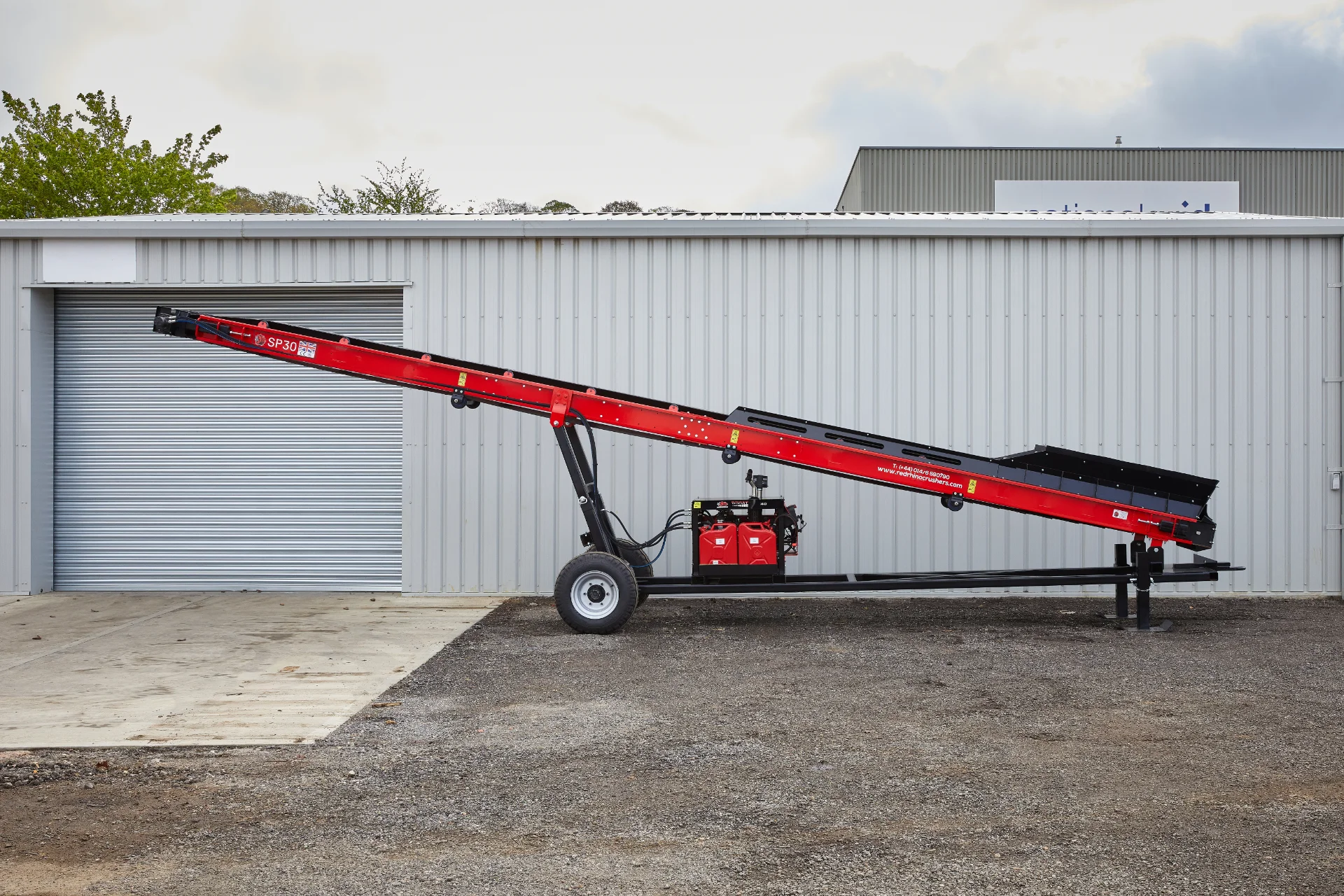

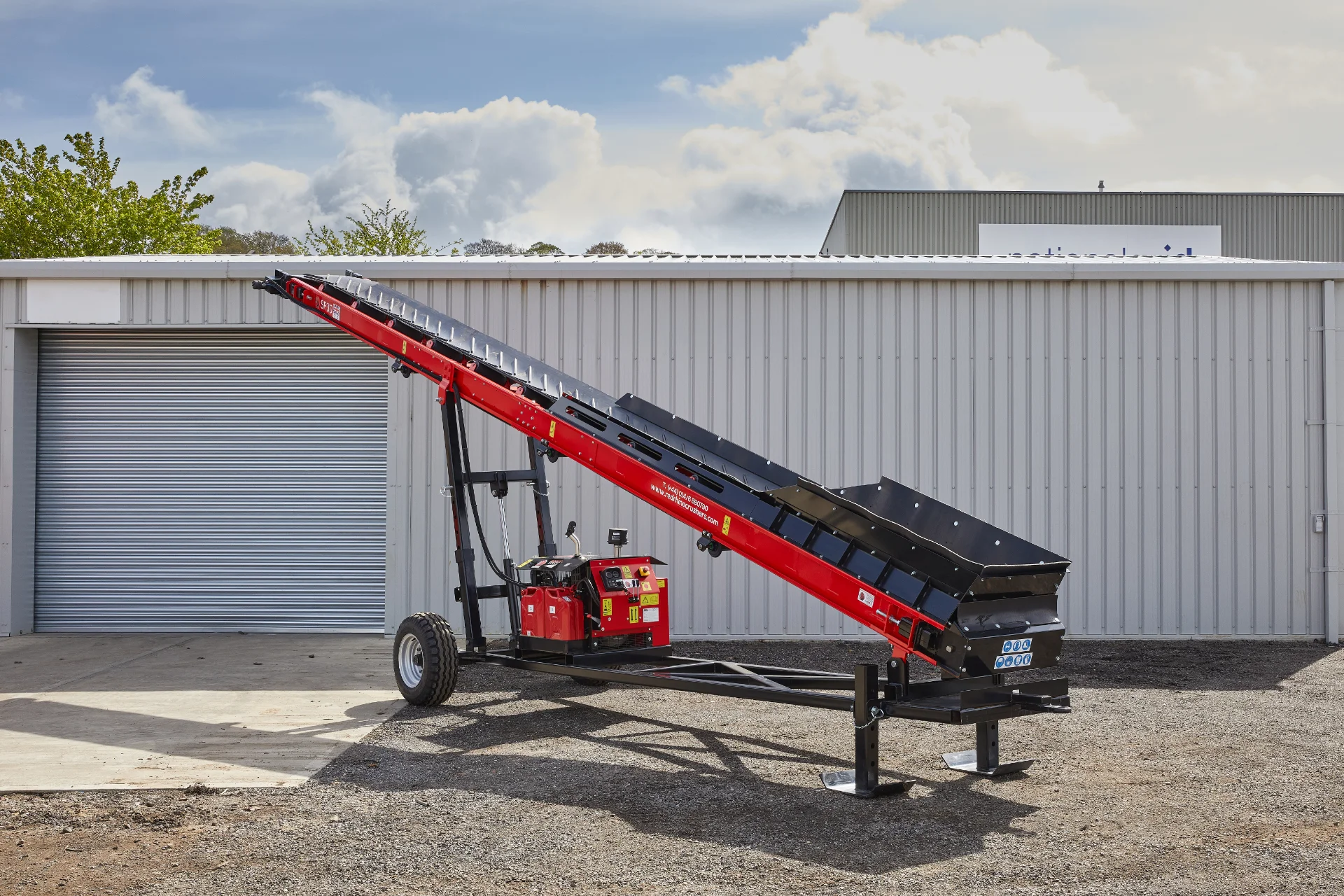

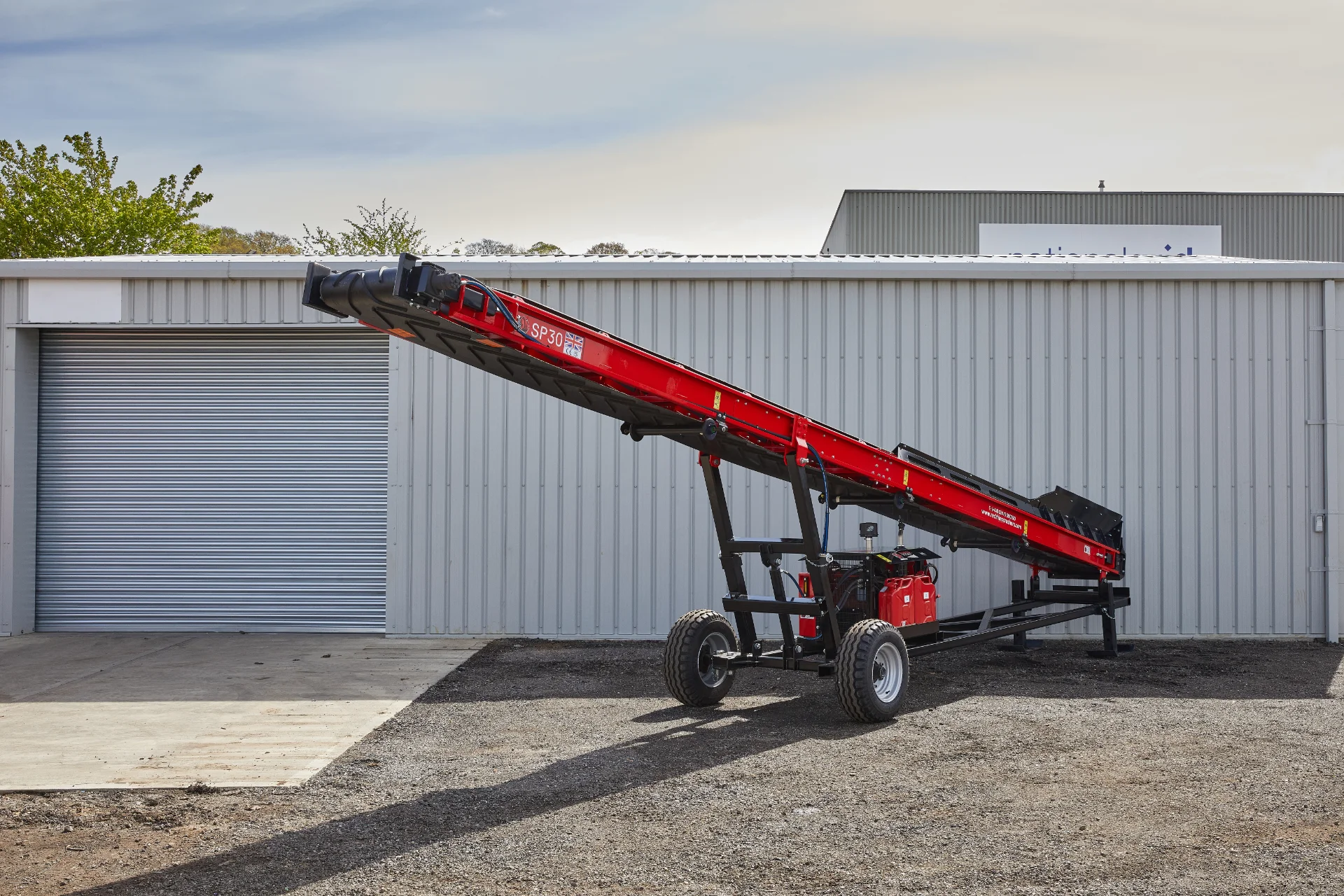

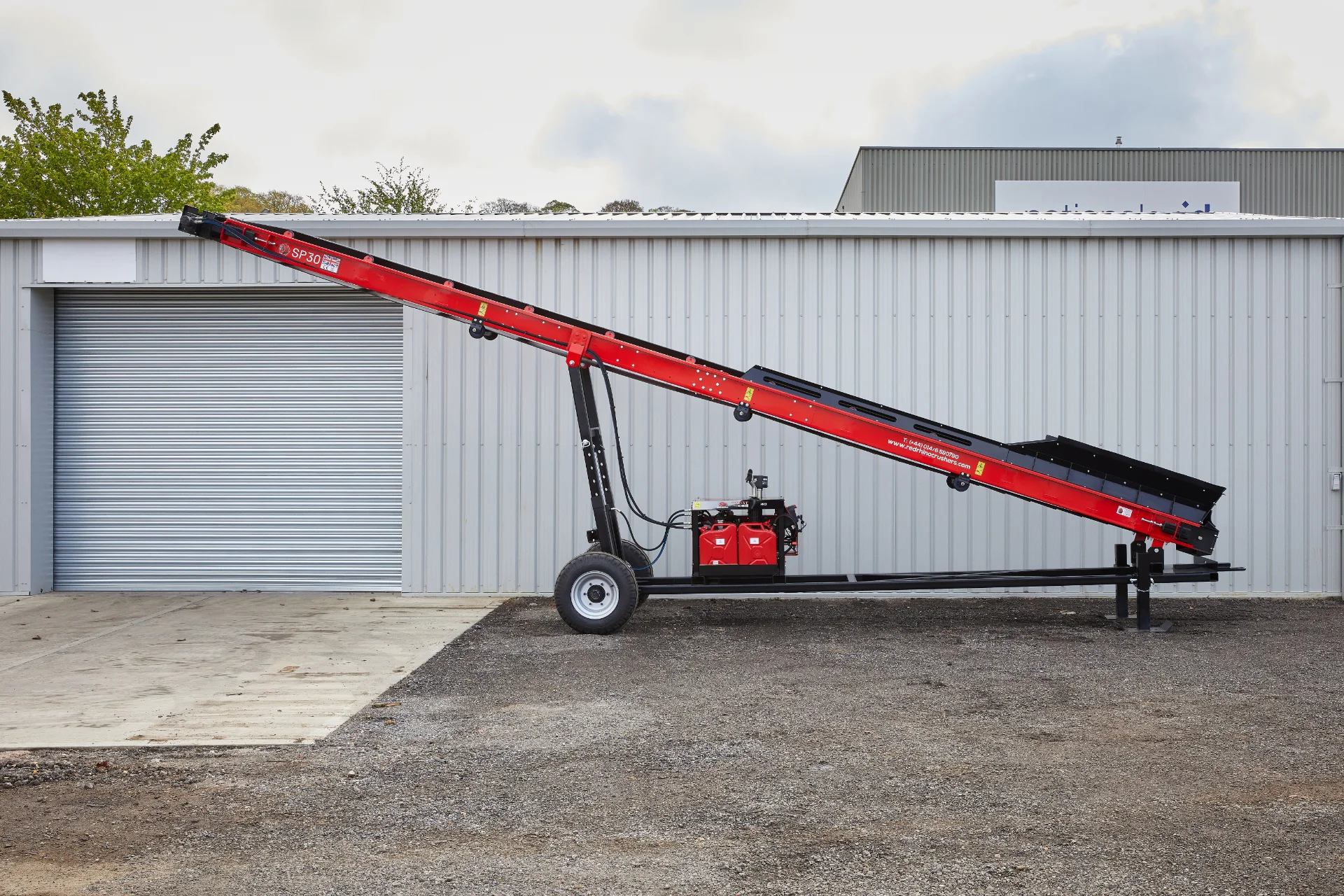

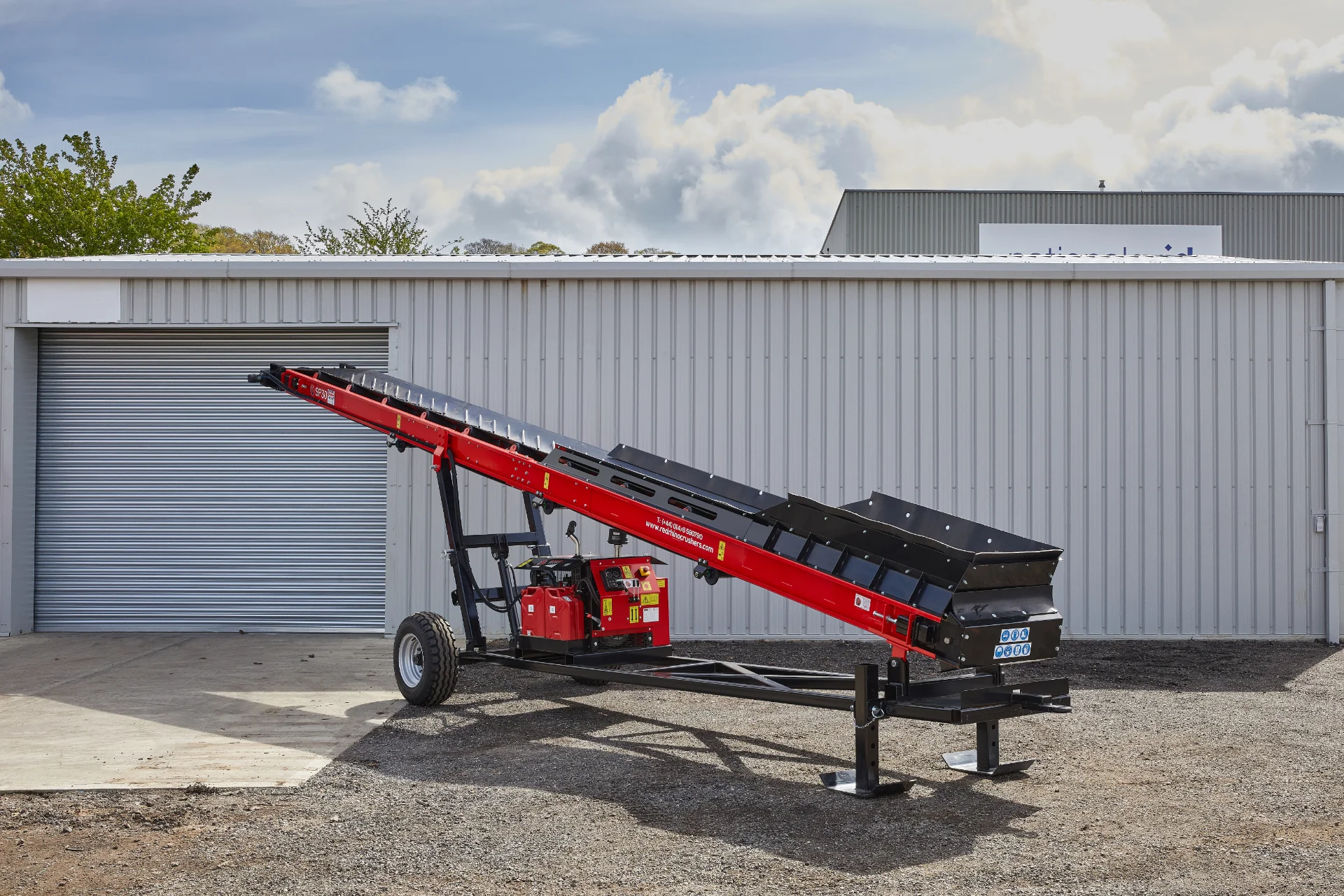

Product Gallery

Red_Rhino_05_23 012
Red_Rhino_05_23 019
Red_Rhino_05_23 043
Red_Rhino_05_23 048
Red_Rhino_05_23 057
Red_Rhino_05_23 069

STANDARD FEATURES

30 ft conveyor length
600mm wide chevron belt
Radial stub axles-manually operated
200/60 14.5 Agricultural wheels
Hydraulic height adjustment – 5 positions

DIMENSIONS

Width

1,940mm

Weight

1,750kg

Towable length

9,680mm

Raised Stockpile height

3,900mm

Lowest Stockpile height

2,950mm

Get exact specifications, throughput capabilities, and custom pricing for your next project.

Match the Right Machine to Your Material

Your processing capacity, site access limits, and material types dictate the exact equipment you need. Tell us what you are crushing and the environment you are operating in. We’ll cut through the noise and provide the precise performance data, configuration options, and pricing structures required to make a confident, operational decision.

  • Performance Data: Detailed breakdowns of tonnage, dimensions, and hydraulic capabilities.
  • Custom Configurations: Expert advice on dust suppression, remote operations, and product compatibility.
  • Direct Support: Unrivalled technical guidance straight from our in-house engineering and production team.

Tell us about your material and product requirements below to request your tailored product breakdown and pricing.

Get a Quote

Tell us about your application and requirements so our team can discuss the right specification and provide a quotation.

HIRE LOCATOR

Click here to view the hire locator page, to find your local dealer in our UK wide network.

GOT A QUESTION?

Click here to contact a member of our friendly and knowledgeable customer service team with any questions you may have on this product.

Download Product Data Sheet
Request a quote now
Contact Us

Frequently Asked Questions

The SP30 moves processed material into stockpiles, reducing the need for repeated loader handling. Its adjustable axle position supports stockpiling at different radii.

No. The SP30 is a towable conveyor rather than a tracked stacker. Its 1,750 kg weight and agricultural wheels make it manoeuvrable around suitable sites.

The standard unit uses an external 40-litre hydraulic supply to control the belt and height. An optional diesel Power Boost pack allows independent operation.

It has a 30 ft conveyor, a 600 mm-wide chevron belt and five hydraulic height positions. The raised stockpile height reaches 3,900 mm.

Yes. The towable design allows the unit to be repositioned around a site, while the manually adjusted radial axles support multiple stockpile locations.
