RR 5000 plus

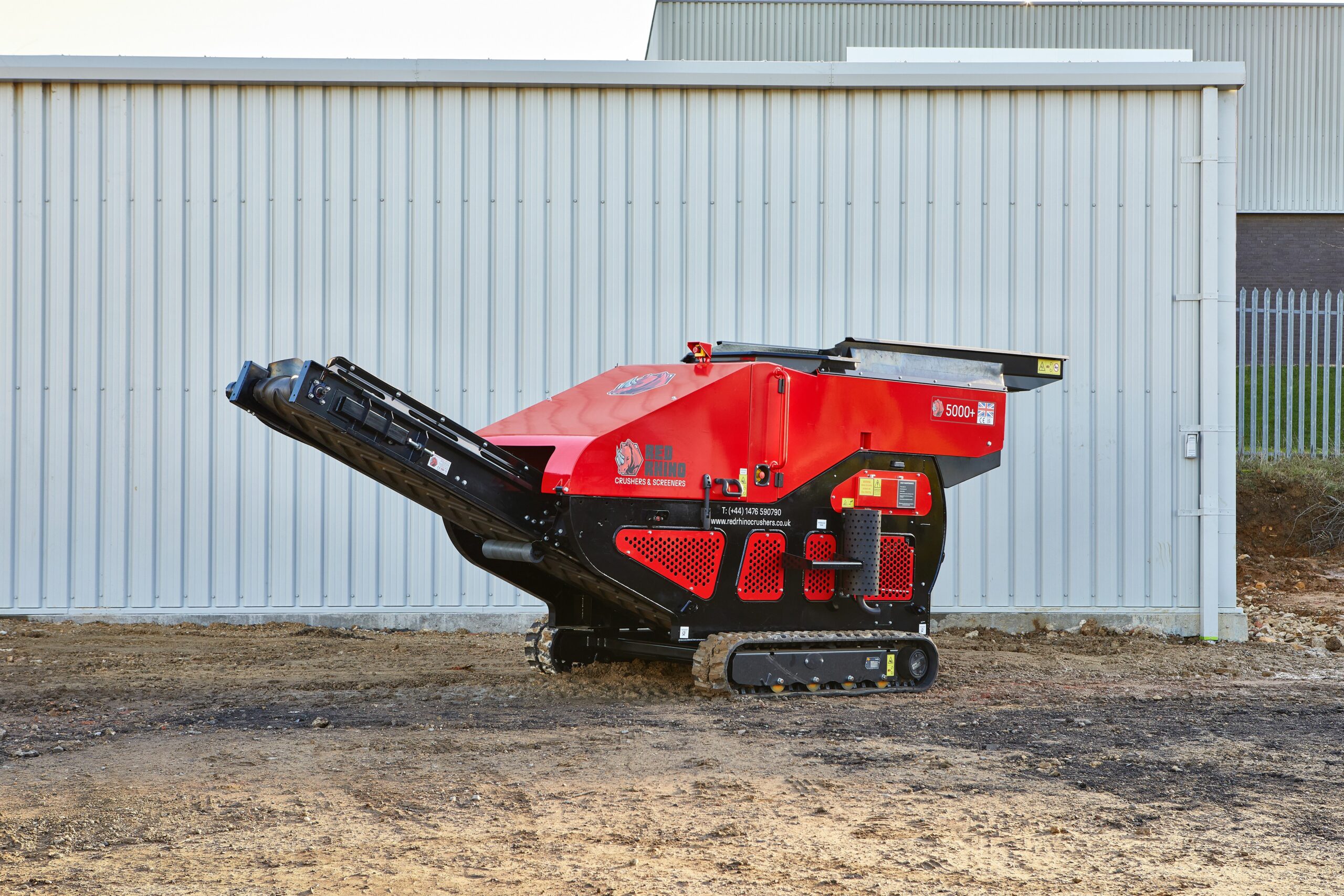

Red Rhino 5000+ from the front view

The 5000 Plus is similar to the standard 5000 but with the added feature of a vibrating feeder. This addition is hydraulically driven and operated by the remote-control handset.

Instant hydraulic adjustable jaws allow output product sizes to range from 20mm up to 100mm. Being only 1665mm wide, the 5000 Plus can enter sites where access and space are restricted. Dust suppression is fitted as standard, by means of fine water spray nozzles utilising standard domestic hose pressure.



The 5000 Plus makes light work of reinforced concrete, brick, porcelain and other aggregate type products. Crushing with the 5000 Plus can save thousands of pounds on muck away and bought in backfill.
Using the wireless remote-control system crushing with a series can be a one-man operation.

Red Rhino 5000+ from the front view

The 5000 Plus is similar to the standard 5000 but with the added feature of a vibrating feeder. This addition is hydraulically driven and operated by the remote-control handset.

Instant hydraulic adjustable jaws allow output product sizes to range from 20mm up to 100mm. Being only 1665mm wide, the 5000 Plus can enter sites where access and space are restricted. Dust suppression is fitted as standard, by means of fine water spray nozzles utilising standard domestic hose pressure.



The 5000 Plus makes light work of reinforced concrete, brick, porcelain and other aggregate type products. Crushing with the 5000 Plus can save thousands of pounds on muck away and bought in backfill.
Using the wireless remote-control system crushing with a series can be a one-man operation.

Product Gallery

Product Videos

STANDARD FEATURES

Jaw aperture of 500mm x 250mm
Average product size from 20mm to 100mm
Kubota 25HP 4- cylinder water cooled diesel engine Stage V emission compliant
Wireless remote control system for all functions

DIMENSIONS

Length

5600mm

Width

1665mm

Loading Height

2080mm

Weight

3170kg

HIRE LOCATOR

Click here to view the hire locator page, to find your local dealer in our UK wide network.

GOT A QUESTION?

Click here to contact a member of our friendly and knowledgeable customer service team with any questions you may have on this product.
